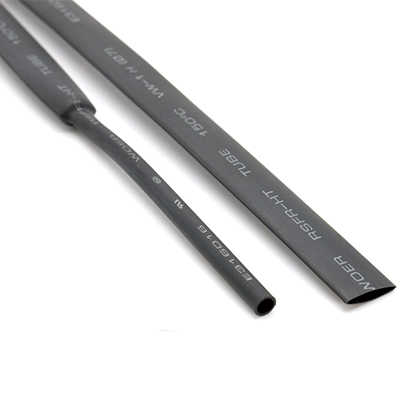

类产品介紹：

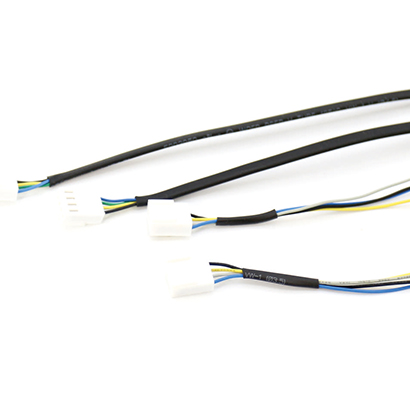

无卤耐还耐高溫阻燃性好型热缩管由辅射热塑聚烯烃的原材料搭建，阻燃性好型低能耗、耐还耐高溫、无卤无锑、化学实验操作电效果非常好的，通常功能表是还耐高溫活动场所进行连接结构的电电绝缘、焊点金属防锈防锈、厂家安全防护和电子器件器件线束保护区，广泛的应采用电子器件器件、流量、各类汽车、轮船、航班生产制造等层面，需要适应采用家庭支出电子器件器件香薰炉、磁感应炉、电饭煲、徽波炉、烤箱等。
商品特色：
l 实行标准规定：UL224，CAN/CSA C22.2 NO198.1-99，AMS-DTL-23053/5 Class 1
l 热缩倍数：2:1
l 起讫膨胀工作温度：≥+84℃
l 根本缩水温差：≥+135℃
l 用溫度：-55℃~+150℃
l 无卤、无锑、低烟、黄毒、厚实、耐油
l 环保节能规则：RoHS、SONY-SS 00259
l 细则字体有颜色：黑、红、绿、蓝等全球细则字体有颜色
新产品运作：
稳定性 | 指标体系 | 可靠性试验形式 |
热塑比强度 | ≥10.4 MPa | ASTM D 2671 |
损伤受力率 | ≥200% | ASTM D 2671 |
锈蚀后伸拉难度 | ≥7.3 MPa | 180℃×168h |
老旧化后折断伸展率 | ≥100% | 180℃×168h |
轴径转变率 | -5%~+5% | ASTM D 2671 |
阻燃材料性 | VW-1 | ASTM D 2671 C法 |
耐电压降(600V) | 2500 V，1min不热击穿 | UL224 |
热影响 | 无波浪纹，无滴落 | UL224(250℃×4h) |
击穿电压硬度 | ≥15kV/mm | ASTM D 149 |
体积大小电阻值率 | ≥1014 Ω·cm | IEC 60093 |
标准表：
英制尺寸 (inch) | 年纪 | 供货合同內径 (mm) | 全缩后长宽高 (mm) | 条件木箱 米/盘 | 适用于范围内 (mm) | ||
公称直径 | 厚度 | ||||||
*Φ0.6/0.35 | ≥0.90 | ≤0.35 | ≥0.33 | 200 | 0.5~0.7 | ||
3/64 | *Φ0.8/0.40 | ≥1.00 | ≤0.40 | ≥0.33 | 200 | 0.6~0.9 | |
1/16 | *Φ1.0/0.65 | ≥1.60 | ≤0.65 | ≥0.33 | 200 | 0.8~1.2 | |
*Φ1.5/0.85 | ≥2.00 | ≤0.85 | ≥0.36 | 200 | 1.0~1.6 | ||
3/32 | *Φ2.0/1.00 | ≥2.50 | ≤1.00 | ≥0.44 | 200 | 1.1~1.2 | |
*Φ2.5/1.25 | ≥3.00 | ≤1.25 | ≥0.44 | 200 | 1.4~2.6 | ||
1/8 | *Φ3.0/1.50 | ≥3.50 | ≤1.50 | ≥0.44 | 200 | 1.7~2.2 | |
*Φ3.5/1.75 | ≥4.00 | ≤1.75 | ≥0.44 | 200 | 2.0~3.6 | ||
*Φ4.0/2.00 | ≥4.50 | ≤2.00 | ≥0.44 | 200 | 2.2~4.3 | ||
*Φ4.5/2.25 | ≥4.80 | ≤2.25 | ≥0.44 | 100 | 2.5~4.6 | ||
*Φ5.0/2.50 | ≥5.30 | ≤2.50 | ≥0.56 | 100 | 2.7~5.1 | ||
*Φ6.0/3.00 | ≥6.40 | ≤3.00 | ≥0.56 | 100 | 3.2~6.1 | ||
*Φ7.0/3.50 | ≥7.40 | ≤3.50 | ≥0.56 | 100 | 3.7~7.1 | ||
*Φ8.0/4.00 | ≥8.40 | ≤4.00 | ≥0.56 | 100 | 4.2~8.1 | ||
3/8 | *Φ9.0/4.50 | ≥9.30 | ≤4.50 | ≥0.56 | 100 | 4.7~9.1 | |
*Φ10/5.00 | ≥10.3 | ≤5.00 | ≥0.56 | 100 | 5.3~10.1 | ||
*Φ11/5.50 | ≥11.3 | ≤5.50 | ≥0.56 | 100 | 5.8~11.1 | ||
1/2 | *Φ12/6.00 | ≥12.3 | ≤6.00 | ≥0.56 | 100 | 6.3~12.1 | |
*Φ13/6.50 | ≥13.4 | ≤6.50 | ≥0.69 | 100 | 6.8~13.1 | ||
*Φ14/7.00 | ≥14.4 | ≤7.00 | ≥0.69 | 100 | 7.3~14.1 | ||
*Φ15/7.50 | ≥15.5 | ≤7.50 | ≥0.69 | 100 | 7.8~15.1 | ||
*Φ16/8.00 | ≥16.5 | ≤8.00 | ≥0.69 | 100 | 8.3~16.1 | ||
*Φ17/8.50 | ≥17.5 | ≤8.5 | ≥0.69 | 100 | 8.8~17.1 | ||
3/4 | *Φ18/9.00 | ≥18.9 | ≤9.00 | ≥0.69 | 100 | 9.3~18.1 | |
*Φ20/10.0 | ≥21.5 | ≤10.0 | ≥0.77 | 100 | 10.5~21.0 | ||
*Φ22/11.0 | ≥23.4 | ≤11.0 | ≥0.77 | 100 | 11.5~23.0 | ||
1 | *Φ25/12.5 | ≥25.6 | ≤12.5 | ≥0.77 | 50 | 13.0~25.0 | |
*Φ28/14.0 | ≥29.0 | ≤14.0 | ≥0.87 | 50 | 14.5~27.0 | ||
*Φ30/15.0 | ≥31.5 | ≤15.0 | ≥0.87 | 50 | 17.0~29.0 | ||
*Φ35/17.5 | ≥36.5 | ≤17.5 | ≥0.87 | 50 | 20.0~30.0 | ||
1-1/2 | *Φ40/20.0 | ≥41.5 | ≤20.0 | ≥0.87 | 50 | 22.0~35.0 | |
2 | *Φ50/25.0 | ≥51.5 | ≤25.0 | ≥0.97 | 25 | 30~45 | |
*Φ60/30.0 | ≥60.0 | ≤30.0 | ≥1.07 | 25 | 35~50 | ||
3 | *Φ70/35.0 | ≥70.0 | ≤35.0 | ≥1.17 | 25 | 40~60 | |
*Φ80/40.0 | ≥80.0 | ≤40.0 | ≥1.17 | 25 | 45~70 | ||
4 | *Φ100/50.0 | ≥100.0 | ≤50.0 | ≥1.17 | 25 | 55~85 | |
5 | *Φ120/60.0 | ≥120.0 | ≤60.0 | ≥1.17 | 25 | 65~100 | |
6 | *Φ150/70.0 | ≥150.0 | ≤70.0 | ≥1.17 | 25 | 80~120 | |
自己的名字：*尺寸为非平常线管，按支付订单规范要求生产。
