好产品价绍：

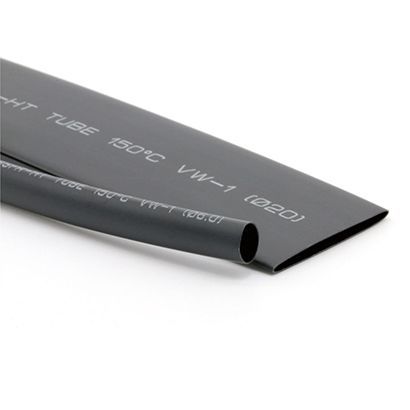

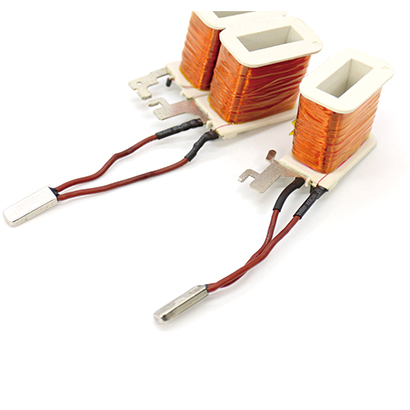

耐高温塑料天气安全性能好热缩管由放射性物质化学交联聚烯烃板材构造，化学实验操作机稳定性优等，核心模块是束线保护好、相螺接的电隔绝、焊点防水蚀防水、机或许防护等。车辆兼具耐较耐高温度、阻燃型特征 ，专为位于较耐高温度环境中的束线与器材所设置，大范围应用在智能、通迅、气车等范畴。
类产品亮点：
l 审理的标准：UL室温综合评估管类兼容AMS-DTL-23053/5和UL224， CAN/CSA C22.2 NO198.1-99
l 热缩系数：2:1
l 开始收宿体温：≥+84℃
l 非常内缩水温：≥+135℃
l 动用溫度：-55℃~+150℃
l 低烟、软绵、阻燃剂
l 环保型细则：RoHS
l 标淮外表色彩：黑、白、红、黄、绿、蓝等八种全球标淮外表色彩
特性 | 技术指标 | 检验策略 |
热塑难度 | ≥10.4 MPa | ASTM D 2671 |
断了拉伸应变率 | ≥200% | ASTM D 2671 |
锈蚀后肌肉拉伸刚度 | ≥7.3 MPa | 180℃×168h |
氧化后折断生长率 | ≥100% | 180℃×168h |
轴径变换率 | -5%~+5% | ASTM D 2671 |
阻燃性好性 | VW-1 | ASTM D 2671 C法 |
耐电阻值(600V) | 2500 V，min 不电压击穿 | UL224 |
热打击 | 无磨痕，无滴落 | UL224(250℃×4h) |
击穿电压密度(与耐电阻值二选一) | ≥15kV/mm | ASTM D 149 |
质量阻值率 | ≥1014 Ω·cm | IEC 60093 |
英制规模 | 规格型号 | 交货內径 (mm) | 全缩后长宽 (mm) | 原则包裝 米/盘 | 适于依据 (mm) | |
(inch) | 直径 | 管壁 | ||||
Φ0.6/0.35 | ≥0.90 | ≤0.35 | ≥0.33 | 200 | 0.5~0.7 | |
3/64 | Φ0.8/0.40 | ≥1.00 | ≤0.40 | ≥0.33 | 200 | 0.6~0.9 |
1/16 | Φ1.0/0.65 | ≥1.60 | ≤0.65 | ≥0.33 | 200 | 0.8~1.2 |
Φ1.5/0.85 | ≥2.00 | ≤0.85 | ≥0.36 | 200 | 1.0~1.6 | |
3/32 | Φ2.0/1.00 | ≥2.50 | ≤1.00 | ≥0.44 | 200 | 1.1~1.2 |
Φ2.5/1.25 | ≥3.00 | ≤1.25 | ≥0.44 | 200 | 1.4~2.6 | |
1/8 | Φ3.0/1.50 | ≥3.50 | ≤1.50 | ≥0.44 | 200 | 1.7~2.2 |
Φ3.5/1.75 | ≥4.00 | ≤1.75 | ≥0.44 | 200 | 2.0~3.6 | |
Φ4.0/2.00 | ≥4.50 | ≤2.00 | ≥0.44 | 200 | 2.2~4.3 | |
Φ4.5/2.25 | ≥4.80 | ≤2.25 | ≥0.44 | 100 | 2.5~4.6 | |
Φ5.0/2.50 | ≥5.30 | ≤2.50 | ≥0.56 | 100 | 2.7~5.1 | |
Φ6.0/3.00 | ≥6.40 | ≤3.00 | ≥0.56 | 100 | 3.2~6.1 | |
Φ7.0/3.50 | ≥7.40 | ≤3.50 | ≥0.56 | 100 | 3.7~7.1 | |
Φ8.0/4.00 | ≥8.40 | ≤4.00 | ≥0.56 | 100 | 4.2~8.1 | |
3/8 | Φ9.0/4.50 | ≥9.30 | ≤4.50 | ≥0.56 | 100 | 4.7~9.1 |
Φ10/5.00 | ≥10.3 | ≤5.00 | ≥0.56 | 100 | 5.3~10.1 | |
Φ11/5.50 | ≥11.3 | ≤5.50 | ≥0.56 | 100 | 5.8~11.1 | |
1/2 | Φ12/6.00 | ≥12.3 | ≤6.00 | ≥0.56 | 100 | 6.3~12.1 |
Φ13/6.50 | ≥13.4 | ≤6.50 | ≥0.69 | 100 | 6.8~13.1 | |
Φ14/7.00 | ≥14.4 | ≤7.00 | ≥0.69 | 100 | 7.3~14.1 | |
Φ15/7.50 | ≥15.5 | ≤7.50 | ≥0.69 | 100 | 7.8~15.1 | |
Φ16/8.00 | ≥16.5 | ≤8.00 | ≥0.69 | 100 | 8.3~16.1 | |
Φ17/8.50 | ≥17.5 | ≤8.5 | ≥0.69 | 100 | 8.8~17.1 | |
3/4 | Φ18/9.00 | ≥18.9 | ≤9.00 | ≥0.69 | 100 | 9.3~18.1 |
Φ20/10.0 | ≥21.5 | ≤10.0 | ≥0.77 | 100 | 10.5~21.0 | |
Φ22/11.0 | ≥23.4 | ≤11.0 | ≥0.77 | 100 | 11.5~23.0 | |
1 | Φ25/12.5 | ≥25.6 | ≤12.5 | ≥0.77 | 50 | 13.0~25.0 |
Φ28/14.0 | ≥29.0 | ≤14.0 | ≥0.87 | 50 | 14.5~27.0 | |
Φ30/15.0 | ≥31.5 | ≤15.0 | ≥0.87 | 50 | 17.0~29.0 | |
Φ35/17.5 | ≥36.5 | ≤17.5 | ≥0.87 | 50 | 20.0~30.0 | |
1-1/2 | Φ40/20.0 | ≥41.5 | ≤20.0 | ≥0.87 | 50 | 22.0~35.0 |
2 | Φ50/25.0 | ≥51.5 | ≤25.0 | ≥0.97 | 25 | 30~45 |
Φ60/30.0 | ≥60.0 | ≤30.0 | ≥1.07 | 25 | 35~50 | |
3 | Φ70/35.0 | ≥70.0 | ≤35.0 | ≥1.17 | 25 | 40~60 |
Φ80/40.0 | ≥80.0 | ≤40.0 | ≥1.17 | 25 | 45~70 | |
4 | Φ100/50.0 | ≥100.0 | ≤50.0 | ≥1.17 | 25 | 55~85 |
5 | Φ120/60.0 | ≥120.0 | ≤60.0 | ≥1.17 | 25 | 65~100 |
6 | Φ150/70.0 | ≥150.0 | ≤75.0 | ≥1.17 | 25 | 80~120 |
